DI & Ion Exchange Water Filter Cartridges: The Manufacturer’s Sourcing Guide

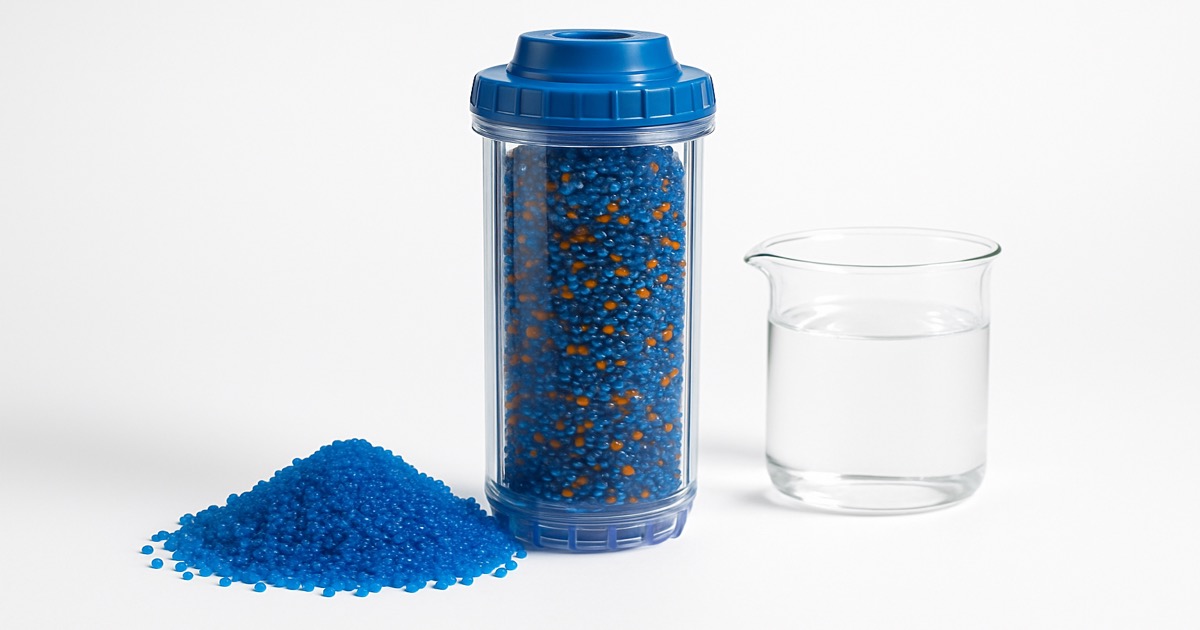

Quick answer: A deionization cartridge is a plastic shell packed with mixed-bed ion exchange resin that strips dissolved ions down to near-zero TDS. Capacity follows one formula — gallons ≈ 2,050 × ft³ of resin ÷ feed TDS — which means a 10-inch cartridge yields about 65 gallons on 100 ppm tap water but around 650 gallons on 10 ppm RO permeate. Resin is 70–85% of the manufacturing cost, so the two things that determine whether you have a good supplier are resin grade and actual drained fill weight.

Ion exchange is the one filtration category where the physical cartridge is almost irrelevant and the media is everything. That makes it unusually easy to be cheated on, and unusually profitable if you specify it correctly. This guide is written from the factory side — what we actually control on the production line, and what you should be measuring when the samples arrive.

---

What DI Resin Does That Carbon and Membranes Cannot

Sediment filters trap particles mechanically. Carbon adsorbs organics and chlorine onto pore surfaces. Reverse osmosis rejects ions at a membrane by size and charge exclusion, but even a good membrane passes 1–5% of the feed ionic load.

Ion exchange works on a completely different principle: stoichiometric swapping. Strong acid cation (SAC) resin in the hydrogen form exchanges every incoming cation — Ca²⁺, Mg²⁺, Na⁺ — for H⁺. Strong base anion (SBA) resin in the hydroxide form exchanges every incoming anion — Cl⁻, SO₄²⁻, HCO₃⁻, and importantly silica — for OH⁻. The released H⁺ and OH⁻ combine into water. The dissolved solids do not get filtered out; they get chemically replaced with water.

That is why DI is the only technology that reaches genuinely zero TDS, and why it is the final stage in every ultrapure water train. It is also why it is expensive per gallon and why it dies abruptly rather than degrading gracefully — when the exchange sites are full, they are full.

Technology	Removal mechanism	Typical output	Cost per 1,000 gal	Fails by
Sediment (PP)	Mechanical size exclusion	No TDS change	$0.02–0.10	Pressure drop rises
Carbon block (CTO)	Adsorption	No TDS change	$0.10–0.40	Taste breakthrough
RO membrane	Size + charge rejection	95–99% TDS removal	$0.30–1.20	Flux decline, salt passage
Mixed-bed DI	Stoichiometric ion exchange	0 ppm, up to 18.2 MΩ·cm	$3.00–25.00	Abrupt TDS breakthrough

The comparison that matters commercially: DI costs roughly 10–30× more per gallon than RO. This is not a reason to avoid it — it is the reason you never run it alone. The full membrane comparison sits in our RO vs UF vs NF guide.

---

Mixed-Bed vs Two-Bed: Which Format You Are Actually Buying

	Two-bed (separate vessels)	Mixed-bed (single bed)
Configuration	SAC vessel → SBA vessel in series	Cation and anion intimately blended
Typical output	1–5 ppm residual, ~1 MΩ·cm	<0.1 ppm, up to 18.2 MΩ·cm
Silica removal	Poor to moderate	Good with Type I SBA
On-site regeneration	Practical	Impractical — requires bead separation
Common format	Plumbed tanks, service-exchange vessels	Cartridges, polishing tanks
Typical use	Boiler feed, bulk industrial pre-DI	Labs, aquariums, detailing, point-of-use

Cartridge-format DI is effectively always mixed-bed. The reason is a bit of chemistry worth understanding, because it explains why mixed-bed beats two-bed on quality: in a mixed bed each adjacent cation–anion bead pair acts as one complete deionization stage, so a 250 mm bed contains the equivalent of thousands of stages in series. The H⁺ and OH⁻ released neutralise each other immediately at the bead surface, so there is no accumulating counter-ion gradient to drive leakage back into solution.

Resin ratio. Standard mixed bed is roughly 40% cation to 60% anion by volume — often quoted as 2:3. That ratio is set by exchange capacity per unit volume, not by convenience: anion resin has lower volumetric capacity, so it needs proportionally more volume to match the cation resin’s equivalents. A supplier shipping 50:50 is either using a non-standard resin pair or is padding with the cheaper cation resin. Cation resin costs roughly 40% less than Type I anion, which makes this a common and hard-to-detect cost cut.

Resin grades you may be offered:

• Nuclear grade / semiconductor grade — fully regenerated to >99% conversion, low extractables, low TOC leach. This is what any cartridge claiming 18.2 MΩ·cm needs.
• Standard virgin mixed bed — good conversion, adequate for aquarium, detailing and general point-of-use. The volume grade.
• Regenerated / reclaimed — recovered from service-exchange operations. Cheaper, variable conversion, higher TOC and colour leach. Legitimate for spot-free rinse, unacceptable for laboratory or reef use. Ask directly; it is not always disclosed.

---

The Capacity Math (And Why RO/DI Is Not Optional)

This is the single calculation your customers need, and almost no supplier publishes it honestly.

Mixed-bed resin has a practical working capacity of about 0.55 equivalents per litre. One equivalent as CaCO₃ weighs 50 g, so one litre of resin removes about 27.5 g of dissolved solids before exhaustion.

Gallons ≈ 2,050 × (resin volume in ft³) ÷ (feed TDS in ppm)

Or per litre of resin: gallons ≈ 72 ÷ (feed TDS in ppm) × 100.

Cartridge format	Resin volume	Gallons @ 300 ppm (hard tap)	@ 100 ppm (soft tap)	@ 10 ppm (RO permeate)
10” × 2.5”	~0.9 L (0.032 ft³)	22 gal	65 gal	650 gal
20” × 2.5”	~2.0 L (0.071 ft³)	49 gal	146 gal	1,460 gal
10” × 4.5” (Big Blue)	~2.8 L (0.099 ft³)	68 gal	203 gal	2,030 gal
20” × 4.5” (Big Blue)	~5.8 L (0.205 ft³)	140 gal	420 gal	4,200 gal

Read the first column and the last column together. On raw 300 ppm municipal water, a $4 cartridge dies after 22 gallons — about 18 cents per gallon in media alone. Put an RO membrane in front, and the same cartridge runs 650 gallons at well under a cent per gallon. The RO membrane pays for itself in the first two DI cartridges it saves.

This is the number one specification error we see in incoming enquiries: a distributor asks for DI cartridges to sell as a standalone tap-water solution, gets a wave of “it stopped working in a week” complaints, and concludes the resin was bad. The resin was fine. The system architecture was wrong. Complete RO platforms that DI bolts onto are on our reverse osmosis systems page.

---

Where DI Cartridges Actually Sell

Understanding the end applications tells you which spec to stock, because the grade requirements differ sharply.

Aquarium and reef keeping. The largest consumer-side channel. Reef keepers demand 0 TDS to avoid nitrate, phosphate and silicate feeding nuisance algae. They universally run RO/DI, measure with a handheld TDS meter, and buy colour-indicating resin. High repeat rate, price-aware but quality-conscious. Standard virgin grade, indicating.

Car detailing and spot-free rinse. Fast-growing. Deionized final rinse dries without mineral spotting, so vehicles can be air-dried without towel contact. The practical guidance is to do the high-pressure wash on tap or softened water and switch to a low-flow DI sheet-off rinse at ≤3 GPM — running high flow through DI wastes resin at enormous cost. Big Blue formats dominate. Regenerated grade is acceptable here.

Window cleaning / water-fed pole. Similar profile to detailing but higher daily volume and a professional buyer who does the cost-per-gallon maths. Almost always RO/DI, often twin 20” Big Blue.

Laboratory Type II/III water. ASTM D1193 Type I calls for ≥18 MΩ·cm resistivity; ISO 3696 Grade 1 requires conductivity ≤0.1 mS/m. Cartridge DI is used as the polishing stage in benchtop systems. Nuclear grade only, plus low-TOC documentation. Highest margin, longest qualification cycle.

Battery top-up, humidification, steam and autoclaves. Industrial replacement demand, unglamorous and steady. Standard grade.

Electronics and metal-finishing rinse. Final rinse water must leave no residue. Usually plumbed vessels rather than cartridges, but cartridge polishing is common on small lines.

---

What We Actually Control on the Production Line

This is the part no consumer-facing guide covers, and it is where sourcing risk lives.

Resin fill weight is the spec that matters — and it must be by weight. Mixed-bed resin has a wet bed density of about 720–800 g/L. A properly packed 10-inch cartridge therefore holds roughly 650–720 g of drained resin. If you write your purchase specification in terms of fill volume, a supplier can settle a loose bed and ship 15–20% short with no visible difference. Specify drained net resin weight in grams, and verify it: cut a cartridge from the first lot, drain the resin on a 100-mesh screen for five minutes, weigh it.

Retention screens must match bead size. Mixed-bed beads run 0.3–1.2 mm (roughly 16–50 mesh). End-cap screens need to be at least 100 mesh (150 µm) to retain them under flow, including the fines generated by osmotic shock and shipping attrition. Under-specified screens are the cause of the classic complaint “resin beads coming out of my tap.”

Resin must never be allowed to dry. Ion exchange beads are hydrated gels. If they dry, they shrink; when rewetted they swell fast and fracture, generating fines and losing capacity permanently. Production cartridges are filled wet and immediately sealed in a moisture-barrier bag. Shelf life in an intact sealed bag is 12–24 months; once opened, weeks in a dry warehouse. Any supplier shipping DI cartridges in plain cartons without a sealed inner bag is shipping you a degraded product. Storage conditions for the whole cartridge range are in our shelf life and storage guide.

End cap sealing. Spin welding gives a more reliable seal than ultrasonic on the polypropylene bodies used for DI, because the resin bed transmits vibration and can disrupt the ultrasonic joint. Gaskets should be EPDM or food-grade silicone.

Freeze damage. A wet DI cartridge that freezes in transit or in an unheated warehouse suffers the same bead fracture as a dried one. For northern-hemisphere winter shipments into Northern Europe, Canada or Russia, specify insulated pallet covers or plan the shipping window around it.

---

Ion Exchange for Softening: A Different Product Entirely

A recurring source of confusion in incoming enquiries. “Ion exchange filter cartridge” can mean two very different products:

	Softening cartridge	DI (mixed-bed) cartridge
Resin	SAC in sodium form only	SAC in H⁺ + SBA in OH⁻
Removes	Ca²⁺ and Mg²⁺ hardness	All cations and anions
Exchanges for	Na⁺ (sodium added to water)	H⁺ + OH⁻ (become water)
Output TDS	Unchanged — hardness traded for sodium	Near zero
Regenerable on site	Yes, with brine	No
Typical use	Espresso machines, ice makers, boilers	Ultrapure polishing
FOB 10” cartridge	$1.80–3.20	$2.80–6.00

Softening cartridges are the high-volume product in commercial foodservice — an espresso machine needs hardness removed to prevent boiler scale, and does not want zero TDS, because water with no mineral content extracts coffee badly and is aggressive toward copper boilers and brass fittings. Sending a customer a DI cartridge when they asked for a softening cartridge produces flat coffee and, eventually, a corrosion warranty claim. The scale-control options are compared in our scale inhibitor vs softener vs RO guide.

---

FOB Pricing, MOQ and Order Structuring

Indicative factory pricing, FOB Ningbo:

Item	Spec	FOB (1,000 pcs)	FOB (5,000 pcs)
Mixed-bed DI cartridge, non-indicating	10” × 2.5”, ~680 g resin	$2.80–4.50	$2.40–3.80
Mixed-bed DI cartridge, colour-indicating	10” × 2.5”, ~680 g resin	$3.80–6.00	$3.20–5.10
Mixed-bed DI cartridge	20” × 2.5”, ~1,500 g resin	$6.50–11.00	$5.60–9.20
Big Blue DI cartridge	10” × 4.5”, ~2,100 g resin	$9.00–15.00	$7.80–12.50
Refillable empty shell	10”, 100-mesh screens	$1.20–2.00	$0.95–1.60
Bulk mixed-bed resin	Standard virgin, per litre	$4.50–8.00	$4.00–7.00
Softening cartridge (SAC, Na form)	10” × 2.5”	$1.80–3.20	$1.50–2.70

MOQ is 500–1,000 pieces per SKU for stock items and 3,000 pieces for private-label cartons. Note how narrow the hardware spread is compared with the media spread — a DI cartridge is a $0.60 plastic shell around $2.50–5.00 of resin. Quotes that come in 30% under the range are almost always telling you something about the resin, not about the factory’s efficiency. Ask which of the three grades above they are quoting.

Structuring a first order. Sell the system, not the cartridge. DI-only buyers churn out within weeks when the capacity maths catches up with them. A coherent entry line is:

1. RO membrane and housing — the ionic-load workhorse (RO membrane sourcing guide)
2. 10” PP sediment, 5 µm — membrane protection (PP sediment guide)
3. 10” carbon block, 0.5 µm — dechlorination, mandatory ahead of both membrane and resin (CTO guide)
4. 10” colour-indicating mixed-bed DI — the polishing stage and the recurring revenue

The carbon stage is not optional and should never be value-engineered out. Free chlorine attacks the quaternary ammonium exchange sites on anion resin and destroys capacity permanently — a resin bed that has seen unchlorinated feed once may never reach its rated capacity again. That failure looks identical to “bad resin” in a complaint email, which is why it costs distributors so much goodwill.

---
